SKF · GENUINEB-16006
Ball Bearing 16006
SKF designation 16006
Price
Quoted live · in 24h
1
Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.
Live stock · East Africa network
as of 2026-07-17—
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza
Available — transfers from the network
In stock at Kampala. We transfer across the network and confirm a firm ETA with your quote in under 24h.
§02 · Overview

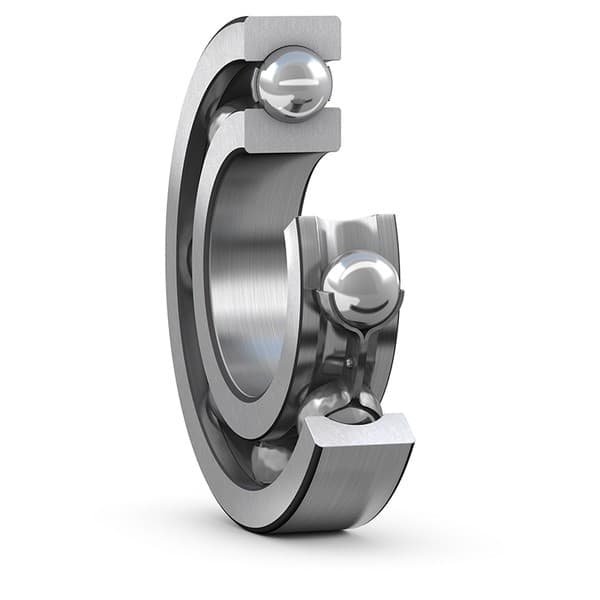

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
§03 · Datasheet
Technical specificationSKF verified24 fields
Deep groove ball bearing
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
BWidth9mm
DOutside diameter55mm
dBore diameter30mm
D₁Shoulder diameter(≈)47.3mm
d₁Shoulder diameter(≈)37.7mm
r₁,₂Chamfer dimension(min.)0.3mm
Load ratings3
CBasic dynamic load rating11.9kN
C₀Basic static load rating7.35kN
PᵤFatigue load limit0.31kN
Speed2
Limiting speed17,000r/min
Reference speed28,000r/min
Calculation factors2
f₀Calculation factor15
kᵣMinimum load factor0.02
Mounting / abutment3
DₐDiameter of housing abutment(max.)53mm
dₐDiameter of shaft abutment(min.)32mm
rₐRadius of shaft or housing fillet(max.)0.3mm
Tolerances & run-out5
Deviation limits of ring width-0.06 – 0 mmmm
Deviation limits of mid-range outside diameter-0.011 – 0 mmmm
Deviation limits of mid-range bore diameter-0.008 – 0 mmmm
ISO tolerance class for dimensionsP6 and tighter width tolerance
ISO tolerance class for geometrical tolerancesP6
Other3
tKₑₐRange of section height at outer ring of assembled bearing13µm
tKᵢₐRange of section height at inner ring of assembled bearing8µm
SKF performance classSKF Explorer
