SKF · GENUINEB-FY 506 M
Housing Component FY 506 M
SKF designation FY 506 M
Price
Quoted live · in 24h
1
Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.
Live stock · East Africa network
as of 2026-07-17✓
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza
In stock — ships 24–48h
Held at Nairobi. Ships 24–48h once your quote is approved; delivered to your nearest office.
Replaces / interchanges
Recommended product ECY 206
§02 · Overview

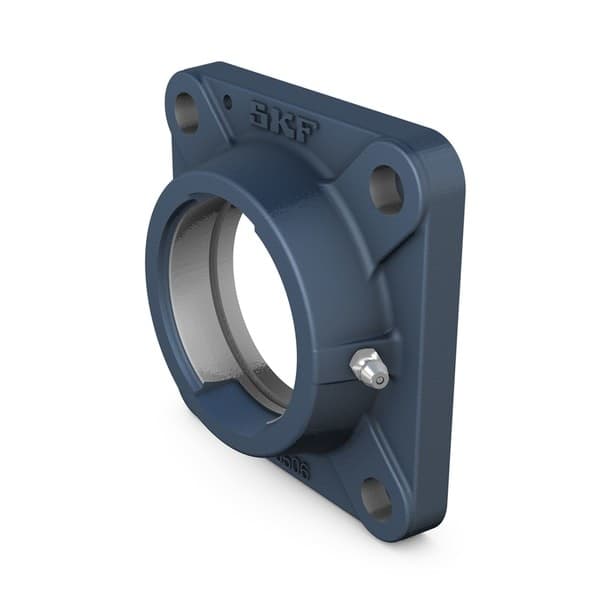

These square flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.
§03 · Datasheet
Technical specificationSKF verified23 fields
Square flanged housing for insert bearings, cast iron
- Resist high levels of contamination
- Accommodate relatively heavy loads
AOverall width32.5mm
LOverall length108mm
A₁Flange width13mm
A₂Axial position of spherical seat (from support surface)20mm
A₃Depth of centring recess3.2mm
A₅Standout of end cover22.5mm
DₐDiameter of spherical seat62mm
DcCentring diameter93.7mm
J₆Distance of dowel pins96mm
J₇Axial offset of dowel pins24.5mm
N₄Recommended diameter for dowel pins4mm
R₁Axial position of the housing thread21mm
Db₁Top external diameter76mm
Db₂Base external diameter84mm
Bolting3
GRecommended diameter for attachment bolts, mm10mm
JCentre distance between bolt holes82.5mm
NDiameter of attachment bolt hole11.5mm
Lubrication4
DNDiameter of head sphere of grease fitting6.5mm
GNThread of the grease fitting1/4-28 SAE-LT
RGHousing thread for grease fitting1/4-28 UNF
Hexagonal key size for the grease fitting7mm
Other2
Cast ironMaterial
End coverECY 206
