SKF · GENUINEB-6310

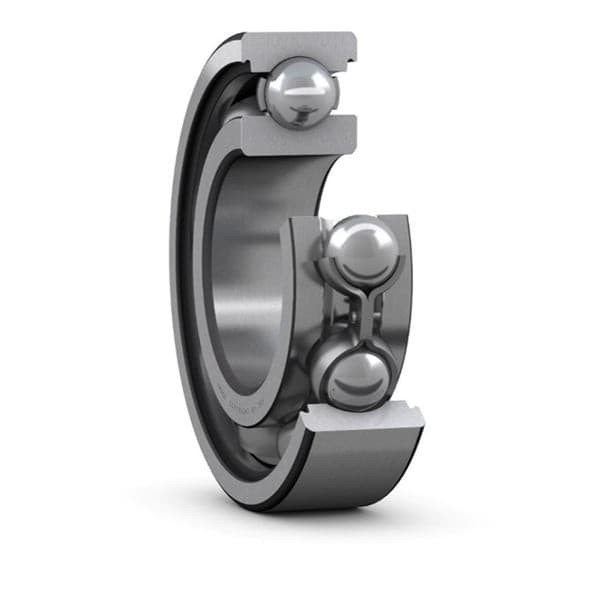

Deep Groove Ball Bearing 6310

SKF designation 6310

Price

Quoted live · in 24h

Quoted in KES
1

Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.

Live stock · East Africa network

as of 2026-07-17
NBO
Nairobi
KLA
Kampala
DAR
Dar es Salaam
MWZ
Mwanza

Available — transfers from the network

In stock at Kampala. We transfer across the network and confirm a firm ETA with your quote in under 24h.

Replaces / interchanges

Recommended tool TMMD 100

§02 · Overview

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

§03 · Datasheet

Technical specificationSKF verified24 fields

Deep groove ball bearing

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
BWidth27mm
DOutside diameter110mm
dBore diameter50mm
D₂Recess diameter()95.2mm
d₁Shoulder diameter()68.76mm
r₁,₂Chamfer dimension(min.)2mm
Load ratings3
CBasic dynamic load rating65kN
C₀Basic static load rating38kN
PᵤFatigue load limit1.6kN
Speed2
Limiting speed8,500r/min
Reference speed13,000r/min
Calculation factors2
f₀Calculation factor13
kᵣMinimum load factor0.03
Mounting / abutment3
DₐDiameter of housing abutment(max.)99mm
dₐDiameter of shaft abutment(min.)61mm
rₐRadius of shaft or housing fillet(max.)2mm
Tolerances & run-out5
Deviation limits of ring width-0.06 – 0 mmmm
Deviation limits of mid-range outside diameter-0.013 – 0 mmmm
Deviation limits of mid-range bore diameter-0.01 – 0 mmmm
ISO tolerance class for dimensionsP6 and tighter width tolerance
ISO tolerance class for geometrical tolerancesP6
Other3
tKₑₐRange of section height at outer ring of assembled bearing18µm
tKᵢₐRange of section height at inner ring of assembled bearing10µm
SKF performance classSKF Explorer
