SKF · GENUINEB-22216 EK

Ball Bearing OD>30mm 22216 EK

SKF designation 22216 EK

Price

Quoted live · in 24h

Quoted in KES
1

Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.

Live stock · East Africa network

as of 2026-07-17
✓
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza

In stock — ships 24–48h

Held at Nairobi. Ships 24–48h once your quote is approved; delivered to your nearest office.

Replaces / interchanges

Recommended product AH 316Recommended product H 316Recommended product H 316 ERecommended product HA 316Recommended product HA 316 ERecommended product HE 316Recommended product HE 316 ERecommended product SNW 16X2.11/16

§02 · Overview

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

§03 · Datasheet

Technical specificationSKF verified34 fields

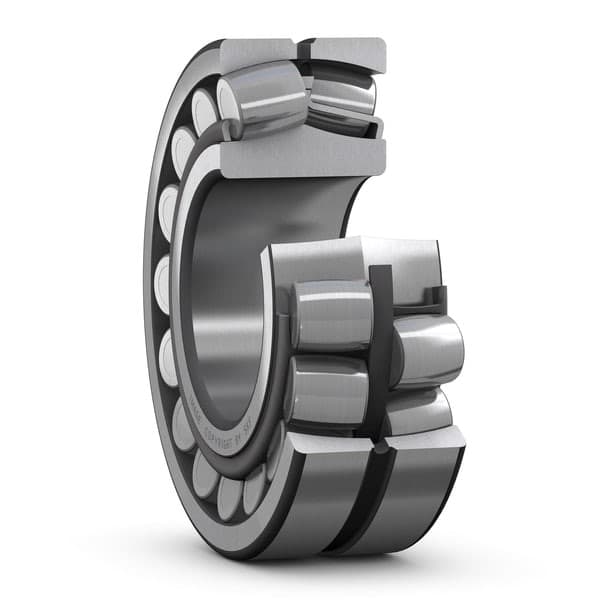

Spherical roller bearing with tapered bore and relubrication features

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
BWidth33mm
DOutside diameter140mm
dBore diameter80mm
D₁Shoulder/recess diameter of outer ring(≈)124mm
d₂Shoulder diameter of inner ring(≈)94.7mm
r₁,₂Chamfer dimension(min.)2mm
Recommended tightening angle for lock nut130°
Load ratings3
CBasic dynamic load rating243kN
C₀Basic static load rating270kN
PᵤFatigue load limit29kN
Speed2
Limiting speed6,000r/min
Reference speed4,300r/min
Calculation factors4
eLimiting value0.22
Y₀Calculation factor2.8
Y₁Calculation factor3
Y₂Calculation factor4.6
Mounting / abutment2
DₐDiameter of housing abutment(max.)129mm
rₐRadius of fillet(max.)2mm
Tolerances & run-out10
tSDPerpendicularity of outer ring outside surface5µm
tSdMaximum run-out of inner ring side face to the bore8µm
Deviation limits of ring width-0.06 – 0 mmmm
Deviation limits of tapered slope0 – 0.03 mmmm
Deviation limits of mid-range outside diameter-0.018 – 0 mmmm
Deviation limits of mid-range bore diameter0 – 0.03 mmmm
Maximum initial clearance95µm
Minimum initial clearance70µm
ISO tolerance class for dimensionsNormal
ISO tolerance class for geometrical tolerancesP5
Lubrication2
KDiameter of lubrication hole3mm
bWidth of lubrication groove6mm
Other4
tKₑₐRange of section height at outer ring of assembled bearing11µm
tKᵢₐRange of section height at inner ring of assembled bearing5µm
SKF performance classSKF Explorer
Tapered 1:12Bore type
