KEMA UptimeParts
SKF · GENUINEB-22207 E

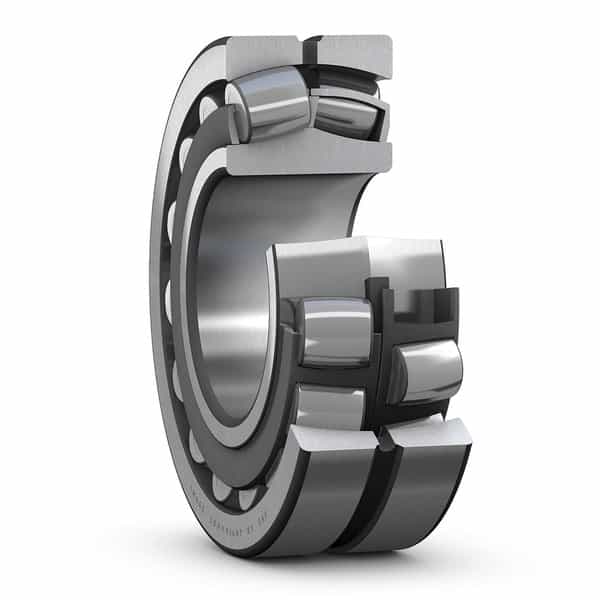

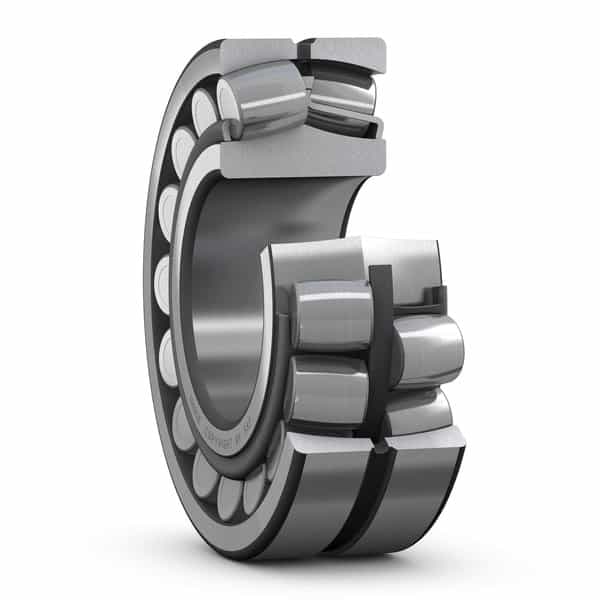

Spherical Roller Bearing 22207 E

SKF designation 22207 E

Price

Quoted live · in 24h

Quoted in KES
1

Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.

Live stock · East Africa network

as of 2026-07-17
✓
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza

In stock — ships 24–48h

Held at Nairobi. Ships 24–48h once your quote is approved; delivered to your nearest office.

§02 · Overview

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

§03 · Datasheet

Technical specificationSKF verified33 fields

Spherical roller bearing with relubrication features

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
BWidth23mm
DOutside diameter72mm
dBore diameter35mm
D₁Shoulder/recess diameter of outer ring(≈)61.8mm
d₂Shoulder diameter of inner ring(≈)44.5mm
r₁,₂Chamfer dimension(min.)1.1mm
Load ratings3
CBasic dynamic load rating88.8kN
C₀Basic static load rating83kN
PᵤFatigue load limit9.15kN
Speed2
Limiting speed12,000r/min
Reference speed9,000r/min
Calculation factors4
eLimiting value0.31
Y₀Calculation factor2.2
Y₁Calculation factor2.2
Y₂Calculation factor3.3
Mounting / abutment3
DₐDiameter of housing abutment(max.)65mm
dₐDiameter of shaft abutment(min.)42mm
rₐRadius of fillet(max.)1mm
Tolerances & run-out9
tSDPerpendicularity of outer ring outside surface4µm
tSdMaximum run-out of inner ring side face to the bore8µm
Deviation limits of ring width-0.06 – 0 mmmm
Deviation limits of mid-range outside diameter-0.013 – 0 mmmm
Deviation limits of mid-range bore diameter-0.012 – 0 mmmm
Maximum initial clearance45µm
Minimum initial clearance30µm
ISO tolerance class for dimensionsNormal
ISO tolerance class for geometrical tolerancesP5
Lubrication2
KDiameter of lubrication hole2mm
bWidth of lubrication groove3.7mm
Other4
tKₑₐRange of section height at outer ring of assembled bearing8µm
tKᵢₐRange of section height at inner ring of assembled bearing5µm
SKF performance classSKF Explorer
CylindricalBore type
