SKF · GENUINEB-2204 ETN9

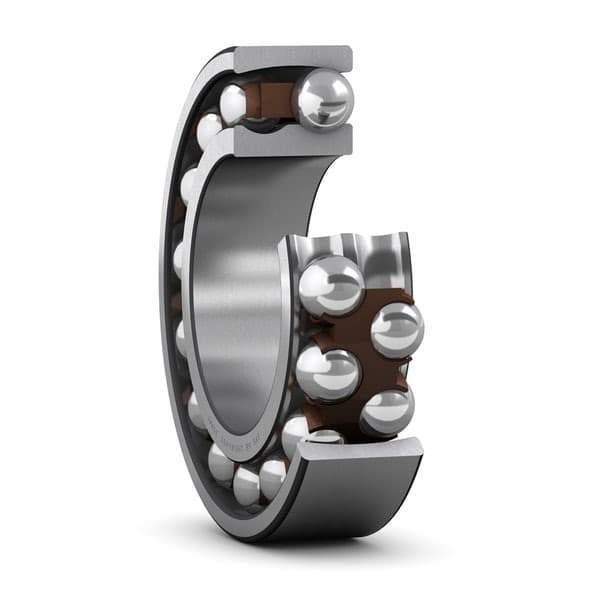

Self-Aligning Ball Bearing 2204 ETN9
SKF designation 2204 ETN9
Price
Quoted live · in 24h
1
Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.
Live stock · East Africa network
as of 2026-07-17✓
NBO
Nairobi
—
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza
In stock — ships 24–48h
Held at Nairobi. Ships 24–48h once your quote is approved; delivered to your nearest office.
§02 · Overview
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
§03 · Datasheet
Technical specificationSKF verified21 fields
Self-aligning ball bearing
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
BWidth18mm
DOutside diameter47mm
dBore diameter20mm
D₁Shoulder diameter outer ring(≈)40mm
d₁Shoulder diameter inner ring(≈)27.37mm
r₁,₂Chamfer dimension(min.)1mm
Load ratings3
CBasic dynamic load rating16.8kN
C₀Basic static load rating4.15kN
PᵤFatigue load limit0.216kN
Speed2
Limiting speed20,000r/min
Reference speed28,000r/min
Calculation factors6
eLimiting value0.4
Y₀Calculation factor1.6
Y₁Calculation factor1.6
Y₂Calculation factor2.4
kᵣCalculation factor0.05
Permissible angular misalignment2.5°
Mounting / abutment3
DₐAbutment diameter housing(max.)41.4mm
dₐAbutment diameter shaft(min.)25.6mm
rₐFillet radius(max.)1mm
Other1
CylindricalBore type
